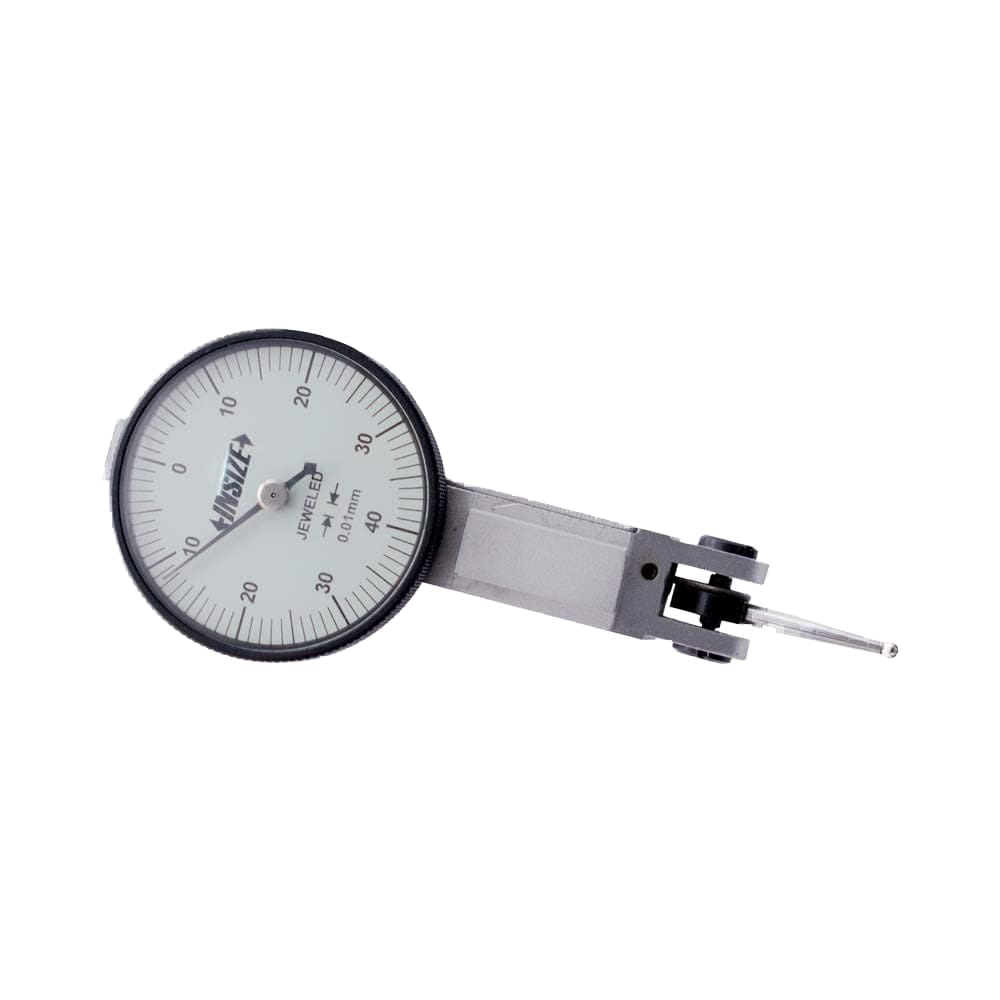

Puppy Dial 2380-08

Description

Features:-

• Meet DIN2270
• Jeweled bearing
• Carbide contact point
• Two measuring directions
• Anti magnetic body
• Supplied with two clamps: diameter ⌀4mm and ⌀8mm
• Inspection certificate traceable to DKD Lab Germany.
• Optional accessory: styli

  Code	Range	Graduation	Accuracy	Hysteresis	Dial reading	A	L
  2380-08	0.8mm	0.01mm	13μm	3μm	0-40-0	⌀30	13.5
  2381-08	0.8mm	0.01mm	13μm	3μm	0-40-0	⌀37	13.5
  2380-02	0.2mm	0.002mm	6μm	2μm	0-100-0	⌀30	12.5
  2381-02	0.2mm	0.002mm	6μm	2μm	0-100-0	⌀37	12.5
  2381-021	0.2mm	0.001mm	6μm	2μm	0-100-0	⌀37	12.5
